| Lugar de origem: | CHINA |
| Marca: | PLM |
| Certificação: | CE |
| Número do modelo: | PLPP-700-II |
| Quantidade de ordem mínima: | 1 grupo |
|---|---|
| Preço: | USD 50000/SET |
| Detalhes da embalagem: | Caixa de madeira padrão da exportação |
| Tempo de entrega: | 20 dias após o depósito |
| Termos de pagamento: | TT/LC/união ocidental |
| Habilidade da fonte: | 1 ajustado por 20 dias |
| Capacidade de produção: | 4-25 m/min | Máximo Largura: | 700 milímetros |
|---|---|---|---|
| Escala ajustável da altura: | 10-80 milímetros | distância entre a colagem de linhas: | 25,4 milímetros |
| Colando linhas: | 2 PCes do × 24 | Pressão de ar de trabalho: | 0,6 MPa |

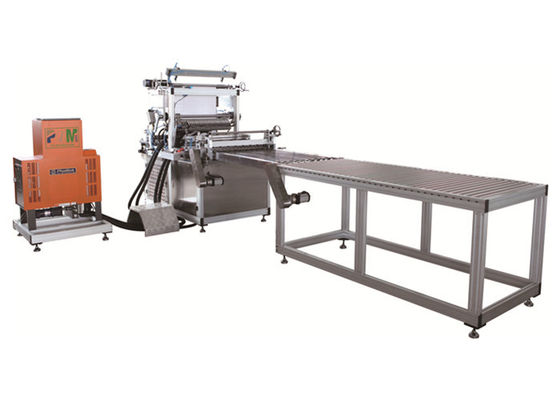

Max. Width 700mm HEPA Filter Full-Auto PP Intermittent Gluing Production Line
PLPP-700-II Leiman Full-Auto PP Intermittent Gluing Production Line
Leiman Full-Auto PP Intermittent Gluing Production Line application
This machine is professionally designed and used for pleating and hot melt dispensing on the fiber glass or polypropylene, and is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.
Leiman Full-Auto PP Intermittent Gluing Production Line Specification
|
Product Name
|
Unit | PLPP-700-II |
|
Production Capacity
|
m/min | 4–25 |
|
Max. width
|
mm | 700 |
|
Adjustable Height Range
|
mm | 10–80 |
|
Distance Between Gluing Lines
|
mm | 25.4 |
|
Gluing Lines
|
pcs | 2 × 24 |
|
Total Line Power
|
kW | 20 |
|
Working Air Pressure
|
MPa | 0.6 |
|
Power Supply
|
V/Hz | 380/50 |
|
M/C weight
|
kg | 500 |
|
Main Machine Size (L × W × H)
|
mm | 5000 × 1300 × 1720 |
|
Glue Machine Size (L × W × H)
|
mm | 850 × 800 × 1165 |
Leiman Auto HEPA Filter Mini Paper Folding Machine Production Line Features
1. Both the fiber glass pleating and hot melt dispensing on the same machine. The long conveyor belt and cooling fans are adopted after the pleating system, so to fast drying the hot melt and cut any length.
2. The main machine, conveyor belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
3. The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.
4. This machine equips the cutting and trimming device, which is used to meet different filter specifications.
5. This production line is stainless steel obey and aluminum frame, which is strong, nice and long life.
6. Six sets of the rollers circling placed on one machine, which is easily to be changed and to meet different specifications.
7. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.
8. High productive efficiency and good smoothness.
9. Furthermore, we can customize the paper-pleating production line of different specifications.
