Name: PLF-1200N Full-Auto Photoelectric Paper Trimming Machine for Filter Production Equipment
Brand: leiman
SKU: PLF-1200N
Price: 8500 USD
Availability: InStock
Rating: 4.9 (183 reviews)

Casa Produtos Máquina de plissamento giratória

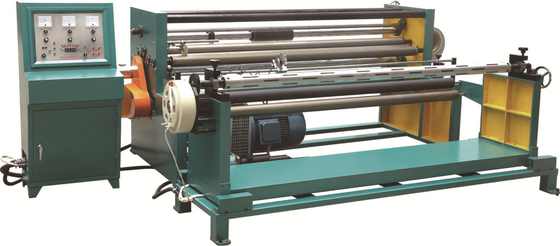

PLF-1200N Full-Auto Photoelectric Paper Trimming Machine for Filter Production Equipment

Detalhes do produto:

Lugar de origem:	China
Marca:	leiman
Certificação:	IS9001
Número do modelo:	PLF-1200N

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1set
Preço:	USD 8500 /SET
Detalhes da embalagem:	Embalagem de madeira do caso
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte:	mês 5/SET/Per

Contato

Descrição de produto detalhada

Largura:	tipo 1300C	Cortando a espessura:	20g-300g
diâmetro máximo do rebobinamento da matéria prima:	800mm	Largura máxima de cortar o material:	1300mm
Eixo inflável de enrolamento:	74mm	Precisão da correção do desvio:	±0.5 milímetro
Número de eixos ao mesmo tempo:	2	Cortando a precisão:	10 a 200 m/min
Poder total:	5 W

The Best Quality PLF-1200N Full-Auto Photoelectric Paper Trimming Machine for Filter Production Equipment

Machine parameters

Specification

Product Name	PLF-1200N
Width	1300C type
Cutting Thickness	20–300 g/m² (depending on different raw materials)
Max. Diameter of Raw Material Unwindin	φ800 mm
Max. Diameter of Raw Material Rewinding	φ800 mm
Max. Width of Slitting Material	1300 mm
Winding Inflatable Shaft	φ74 mm

Number of Rewinding Shafts at the Same Time	2 (double shaft rewinding)
Deviation Correction Accuracy	±0.5 mm
Slitting Accuracy	±0.5 mm
Speed	10–200 m/min
Total Power	5 W
Body Color	gray cover white (other colors are optional)
Use automatic photoelectric correction	according to different raw materials and customer specific requirements

Features

This machine uses a DC motor to keep it running smoothly during acceleration; (frequency conversion speed regulation can also be used)
Automatic meter counting, alarm and other functions;
The rewinding adopts A air shaft structure, which is convenient for loading and unloading;
The unwinding adopts the photoelectric automatic correction system to make irregular materials can be slit normally
Automatic discharge device for flat knife slitting waste edge
Pneumatic shaft feeding, 3 inches

Applications

This machine is suitable for slitting various roll materials such as BOPP, PET, CPP, CPE, PVC, etc. During the production process, the materials are slit and rewinded according to different need.
